Inverters

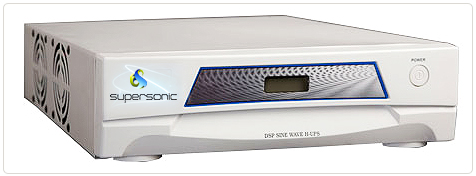

IGBT Based Pure Sine Wave Cyber UPS/ Inverter

Supersonicis committed to providing technically superior products and energy efficient solutions for a wide range of home, office, data center, and industrial applications.

Our inverters are designed to suppress harmonic distortion and support heavy-duty commercial and industrial uses and available in the range of 2.5 KVA 36 V to 60 KVA 360 V DC.

UPSs or uninterruptible power supplies ensure continuous and disturbance-free power to your mission, critical applications as an important part of Supersonic’s power management solutions.

Important loads like lifts, staircase, parking, compounds & common lighting & security systems can be run through an Inverter designed to generate 3 Phase - 4 Wire OUT PUT .

Supersonic not only ensures uninterrupted processes with unmatched reliability but also meets your growing business demands with uniquely-designed scalability and flexibility.

Our customers can rest assure their back-up power will be up and running without interruption 24 hours a day, 7 days a week. Supersonic’s global network and services support our solutions with short response time and high-quality service.

  • 5% Extra Back – up
  • Wide charging Window ( 110VAC to 280VAC)
  • Compact Design & Light Weight
  • 20%- 25 % Saving in Electricity
  • Compatibility With Generator
  • OSCRCTM Technology Based Charger
  • External DC Fuse (Easy to Replace)
  • Capable of Charging/Recovering Deep-Discharged Battery
  • Zero Battery Consumption in ‘Switch Off ’ & ‘Mains Off ‘ Conditions
  • Pure Sine Wave even with Computer & Compact Fluorescent Lamp (CFL) Load
  • Lower Battery Discharge as compared to a conventional Home UPS/Inverter

Technical Specifications*

Description 650VA 850VA 1450VA
Output Voltage at No Load
 220V±5V AC
Output Frequency
 50.0 Hz ± 1.0Hz
Output Wave Form
 Pure Sine Wave
Nominal Battery Voltage
 12V DC 24V DC
Max. No Load Current @ Fully Charged Battery
1.2A 1.2A
Battery Low Alarm
10.6V ± 0.2V  DC 21V ± 0.4V  DC
Battery Low Protection
10.4V ± 0.2V  DC 20.8V ± 0.4V  DC
Peak Efficiency
>85% >85%
No Load Current @ Switch Off/ Mains Off
 OA (Zero Amp)
THD (Total Hormonic Distortion )
 < =3% @ resistive load
Full Load Battery Current
40A±2A 52A±2A 46A±2A
  UPS Mode
Input Voltage Range
180V to 260V Ac ± 5V Ac
Maximum Changeover Time
 <=10ms
  Normal Mode
Input Voltage Range
100V to 280V Ac ± 10V Ac
Input Voltage Range For Charging
 180V to 280V Ac ± 10V Ac
Maximum Changeover Time
 <=10ms
  Charging Mode
Charging Current @ 220 V AC (NC)
 7A+/-1A   9A+/-1A
Charging Current @ 220 V AC (HC)
 10A+/-1A  9A+/-1A
Boost Charging Voltage
 14.2 ± 0.2 VDC 28.4  ± 0.2 VDC
Float Charging Voltage
 13.7 ± 0.2 VDC 27.4  ± 0.2 VDC
  Protections
Protections
 Battery Voltage Low (4 Auto Retries).
Over Load (6 Auto Retries)
Battery Over Charge, Over Temperature, Short Circuit (One Retry), Battery Deep Discharge  Protection
  Displays
Displays
 AC Mains Voltage, UPS ON/OFF
Short Circuit, Overload, Battery Low, Load %
Mains ON/OFF,
Battery Charging/Charged/Low
  Weight and Dimensions
With Packing WXDXH in mm
 390x340x130
Without Packing WXDXH in mm
 310x260x90
Net Weight
 3.4 Kg 4.25 Kg
Gross Weight
 4.2Kg 5.10Kg
  General
Communication
 4Pin Serial Interface for Calibration of Various Parameters
Operating Temprature Range
 0Deg. To 45 Deg.
Relative Humidity
0-90% Non Condensing

Load Chart *

Load 650VA 850VA 1450VA
T.V
 1 - - 1 - - 1 - -
Tube Light
 4 4 - 6 5 - 10 8 -
Fan
 3 4 - 4 5 - 7 9 -
Computers**
 - - 4 - - 5 - - 10

Note: The Charging Current can be increased/decreased using the unique and “first-in-class” On-Site Charging Rate Control OSCRCTM features.
